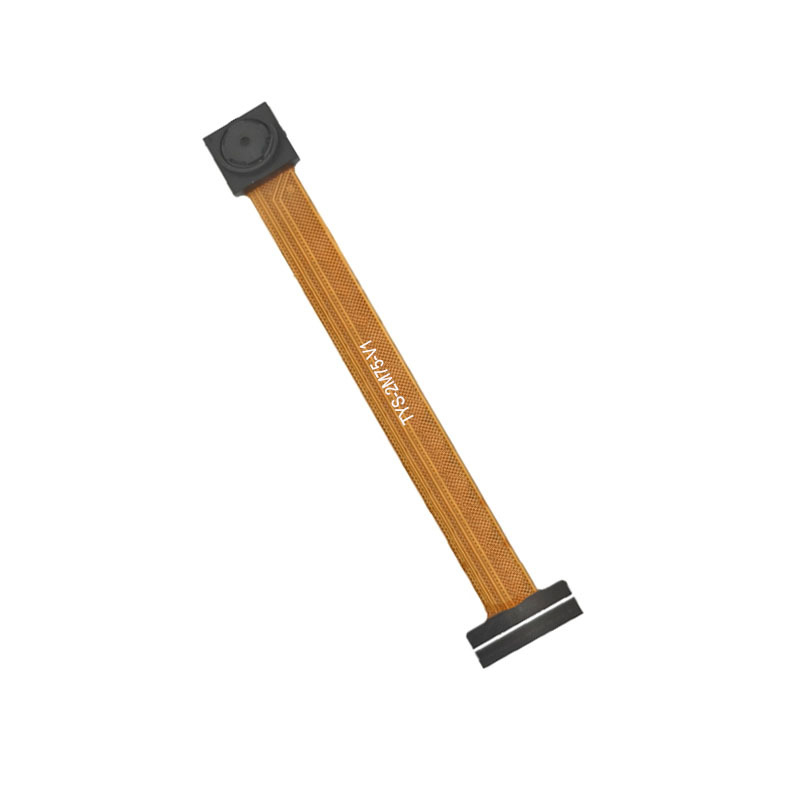

2 Million MIPI Camera Module High-definition OV2735 1080P 24pin Fixed Focus FPC

OV2735 MIPI 24pin CSI-2 Camera Module:

Resolution: TYS-2M735-V1 MIPI CSI-2 camera module 2 million 1920*1080P 30fps FF 24pin FPC adopting Omnivision's proven OmniPixel3-HS pixel technology, it can improve the sensitivity, dynamic range, and color reproduction ability of images, reduce noise, and capture high-quality images under different lighting conditions.

Sensor: 1/2.7 inch OV2735 2 million 1080P pixel size 3.0 μm × 3.0μm high quality camera module with MIPI CSI-2 camera module.Adopting a fixed focus design, it can provide clear imaging effects within a certain object distance range, suitable for shooting fixed scenes or objects at specific distances, and has the advantages of simple structure, low cost, and stable imaging quality.

Frame Rate and Interface: OEM 2-megapixel 1080P 30fps 720P and VGA 60fps OV2735 low power fixed focus MIPI 24pin FPC camera module. Supports HDR function, adopts a 24PIN MIPI interface, has high-speed data transmission capability, can effectively reduce interference and loss during signal transmission, and ensure stable transmission of image data.

Specification:

Technical & Mechanical:

• Power Supply: analog: 2.6-3.0V (2.8V nominal)

                              core: 1.7-1.9V (1.8V nominal)

                                I/O: 1.7-3.0V (1.8V nominal)

• power requirements:Active: 176 mW


• Stable image: 0°C to 60°C
• Operating Temperature: -30°C to 85°C
• Module Size : 10mm*50mm*7.35mm
• Supports binning function
• Horizontal/Vertical mirror,cropping and windowing

More details of 1080P MIPI CSI-2 camera module:

Full resolution 1920*1080 OV2735 2MP CMOS sensor low power fixed focus drone image transmission camera module with MIPI interface. it can capture high-definition aerial images, providing support for fields such as surveying, mapping, and film and television shooting.

High quality wholesale 2-megapixel 0V2735 1080P 30fps FF no distortion lens FPC MIPI camera module for VR/AR filed.It can be applied to VR/AR devices to provide image acquisition functions, allowing users to obtain clearer and more realistic visual experiences in virtual environments.

On sale 1/2.7 inch 2 million OV2735 1920*1080 fixed focus wide angle MIPI smart home camera module.Can be used for smart door locks to achieve facial recognition unlocking or visitor video calls. It can also be installed indoors as a home surveillance camera, capable of capturing 1080P high-definition images and meeting the needs of home security

monitoring.

Support customized OV2735 1080P 30fps 720P 60fps CMOS sensor with IRCUT night vision low power MIPI CSI-2 camera module for online live streaming.1080P high-definition image quality can make the anchor's picture clearer and more delicate, and good photosensitive performance can ensure good imaging effects in different live streaming environments, bringing high-quality viewing experience to the audience.
