High Definition 5-megapixel OS05A20 MIPI Camera Module 2K 60fps Low Light

OS05A20 NIR MIPI CSI-2 Camera Module:

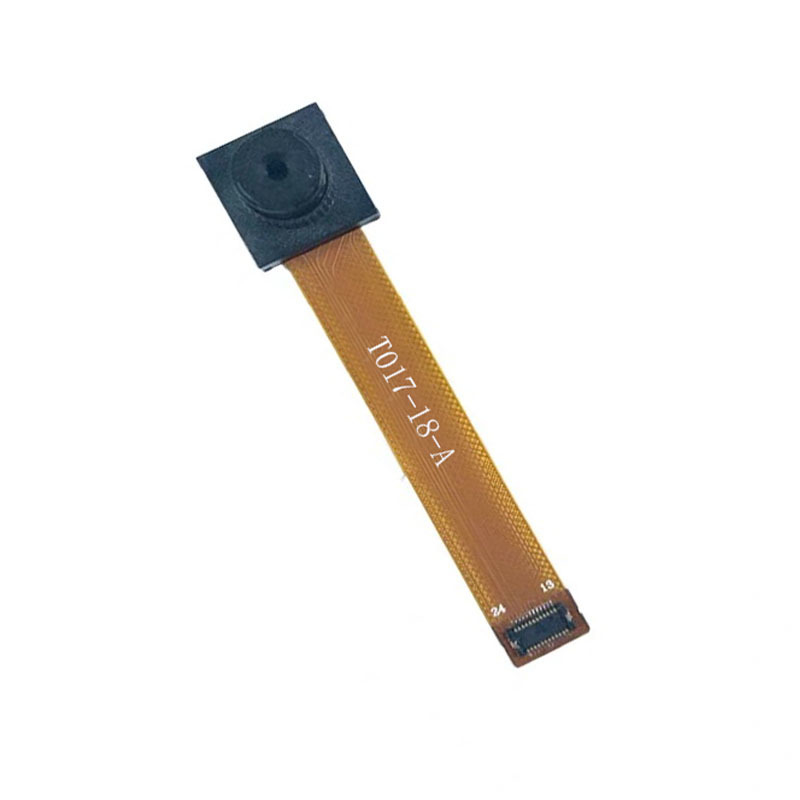

Sensor Type: T017-18-A MIPI CSI-2 camera module adopts the OmniVision OS05A20 2K 1080P color CMOS sensor with a 1/2.7 - inch photosensitive area. It is the world's first image sensor to implement Nyxel® technology, which significantly enhances the sensor's near - infrared (NIR) sensitivity, enabling it to capture high quality images in low light and no light conditions.

Resolution: OS05A20 2K 1080P MIPI camera module supports a 5 - megapixel resolution 2688×1944 and can also output images in multiple formats such as 1080p (1920×1080) and 720P(1280*720).

Pixel Size: Factory direct sales OS05A20 pixel size 2μm×2μm fixed focus MIPI FPC camera module, which can ensure good image quality and light - sensing ability.

Interface Type: 1/2.7 inch 2K 60fps OS05A20 color image sensor low light with 4 - lane MIPI CSI - 2 interface, which enables high - speed and stable transmission of image data.

Specification:

Technical & Mechanical:

• Analog: 2.8V, Core: 1.2V, I/O:1.8V
• Power requirements:Active: 210mA, Standby: 2mA, XSHUTDOWN:2 uA
• Operating Temperature: -30°C to +85°C
• Stable image: 0°C to +60°C
• Module Size : 1.3x1.3cm
• Support 2*2 binning mode
• Support for frame sync

Key Specifications of OS05A20 2K 1080P MIPI camera module:

OS05A20 MIPI CSI-2 facial recognition and access control system camera module NIR 2592*1944 60fps FF lens with 5 million pixels can capture the detailed features of the face, which helps improve the accuracy of face recognition. Even in low light environments, it can work normally with its low light performance.

MIPI camera module OS05A20 5 million high speed 2K 60fps 1080P 120fps fixed focus NIR night vision for Robot.Easy to connect with the main control board of the robot, achieving high-speed image data transmission.It can also work normally at night or in low light environments, such as indoor cleaning robots in dimly lit corners of rooms, or outdoor robots that can effectively perceive the surrounding environment at night.

OmniVision 5MP OS05A20 color CMOS sensor with 1/2.7 inch NIR sensitivity allows it to capture clear images at night or in low light,In security monitoring, the use of infrared lights can achieve 24-hour all-weather monitoring, with no noise or blurring in the image.

Support OEM 5-megapixel OS05A20 2592*1922 low light FF high speed 2K 60fps MIPI sports camera module.it supports high frame rates to smoothly record exciting moments during sports, such as extreme sports, outdoor activities, and other scenes. It can clearly capture fast-moving objects, making the captured videos smoother and clearer.
