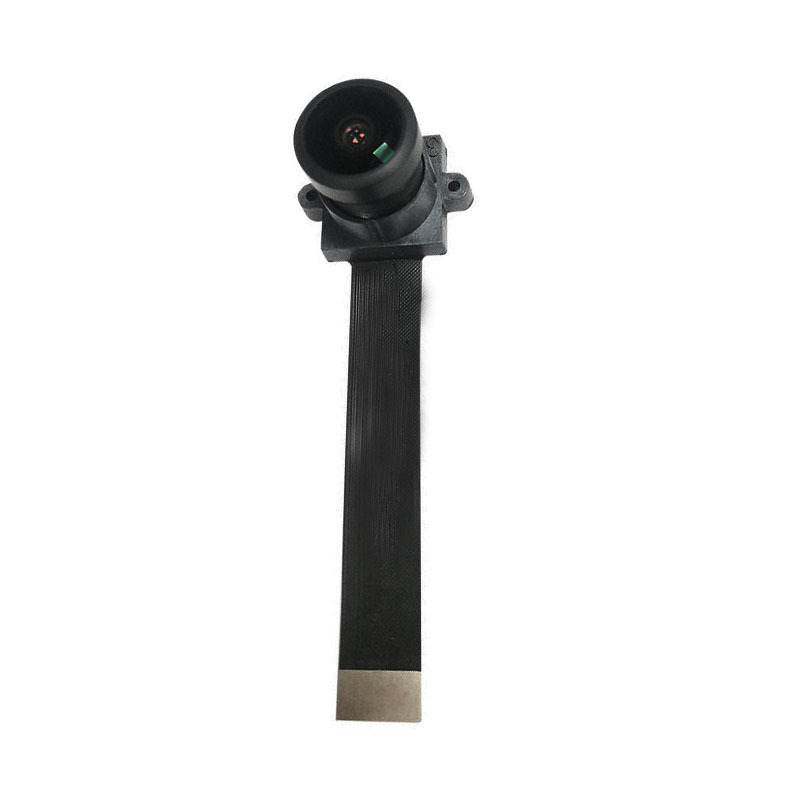

Low Light 4k Camera Module IMX662 90fps Hdmi Camera Module

Name: Low Light 4k Camera Module IMX662 90fps Hdmi Camera Module
Brand: Tuyuan Shun Intelligence (shenzhen) Co., Ltd.
SKU: TYS-6M62-V1
Price: 31.99 USD
Availability: InStock

Model Number:	TYS-6M62-V1
MOQ:	1
Price:	$24.99-$39.99
Delivery Time:	5-15 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Features:

Starlight

Description:

1080P Starlight MIPI CSI-2 Camera Module

Sensor:

1/2.8" IMX662 CMOS

Frame Rate:

Max 1080P 90fps

Focusing Type:

Output Format:

RAW RGB

Interface:

MIPI

Package:

CSP

Packaging Details:

1.4*7*1.52cm

Supply Ability:

800K PCS/Month

Highlight:

4k camera module imx662

90fps hdmi camera module

low light 4k camera module

Product Description

IMX662 MIPI Camera Module Starlight Low Light Wide Dynamic 1080P 90fps CMOS Senosr

IMX662 1080P MIPI Starlight CSI-2 Camera Module:

TYS-6M62-V1 MIPI CSI-2 camera module using IMX662 2MP starlight night vision max 90fps.High frame rate can make dynamic images smoother, better capture the motion trajectory of fast-moving objects or scenes, and reduce blur and ghosting.

2MP 1920*1080 IMX662 low light starlight with M12 fixed focus MIPI camera module.Supporting 2/4 Lane MIPI CSI-2 interface, it can effectively solve the need for cameras to obtain uncompressed high-quality and high signal-to-noise ratio images in complex and varied scene images, and is also easy to connect with different processing platforms.

Specification:

Sensor	1/2.8" IMX662 CMOS	Resolution	2MP 1920*1080
Pixel Size	2.9um*2.9um	Output Format	10/12-bit RAW RGB
Shutter Type	Rolling Shutter	Interface	2/4 Lane MIPI
HDR	Support	Input frequency	24MHz/27MHz/37.125MHz/72MHz/74.25MHz
Resolution & Max Frame Rate	Max 1080P 90fps	Operating System Request	Windows/Linux/Android
Application	Medical equipment/Industrial automation and intelligent manufacturing/Elderly care/Smart home and robot vision/Microscopic imaging/Drones

Technical & Mechanical:

• Power Supply: Analog: 3.3 V

Digital: 1.1 V

I/O: 1.8 V

• Operating Temperature: -40°C to +85°C

• Sable image temperature: 0°C to +60°C

• Module Size : 14mm*70mm*15.2mm

• Customization is fully supported

• Built-in timing adjustment circuit,H/V sriver and serial communicaton circuit

• Horizontal/Vertical 2/2-line binning mode,Window cropping mode

• Synchronizing sensors function

More details of 2MP 1080P Starlight MIPI CSI-2 camera module:

1/2.8 IMX662 1920*1080 max 90fps high speed starlight MIPI camera moduel for AR/VR devices and industrial endoscopes.The small sized design facilitates integration into AR glasses or endoscope probes, providing clear visual feedback with 1080P image quality and low light performance for imaging in enclosed dark environments without the need for additional light sources.

Support customized to adapt to product structure IMX662 Starlight MIPI camera module 1080P low light fixed focus in the Industrial Automation filed.It can achieve high-speed detection, complex lighting, and 24-hour monitoring.

MIPI CSI-2 security monitoring and behavior recognition camera module with Sony 2million IMX662 starlight night vision CMOS sensor.Used for factory perimeter prevention, community entrance and exit monitoring, and unmanned area intrusion detection.Starlight level low illumination enables night monitoring without infrared fill light, avoiding exposure of monitoring positions to infrared light.Accurately capturing the fast moving trajectories of pedestrians and vehicles using algorithms.

Sony IMX662 2MP CMOS sensor 1920*1080 high speed 90fps low light with M12 lens MIPI camera module for cell culture observation, insect behavior research, material surface microstructure recording.With 12 bit RAW data supports deep processing of post image, preserving more details required for scientific research;High frame rates can record dynamic experimental processes, such as the movement of substances in chemical reactions.

For monitoring harsh environments,such as underground monitoring in coal mines,monitoring of hazardous material storage areas in chemical workshops.using IMX662 1080P starlight fixed focus HDR color image MIPI CSI-2 camera module.Capture clear color images without relying on strong light sources.
