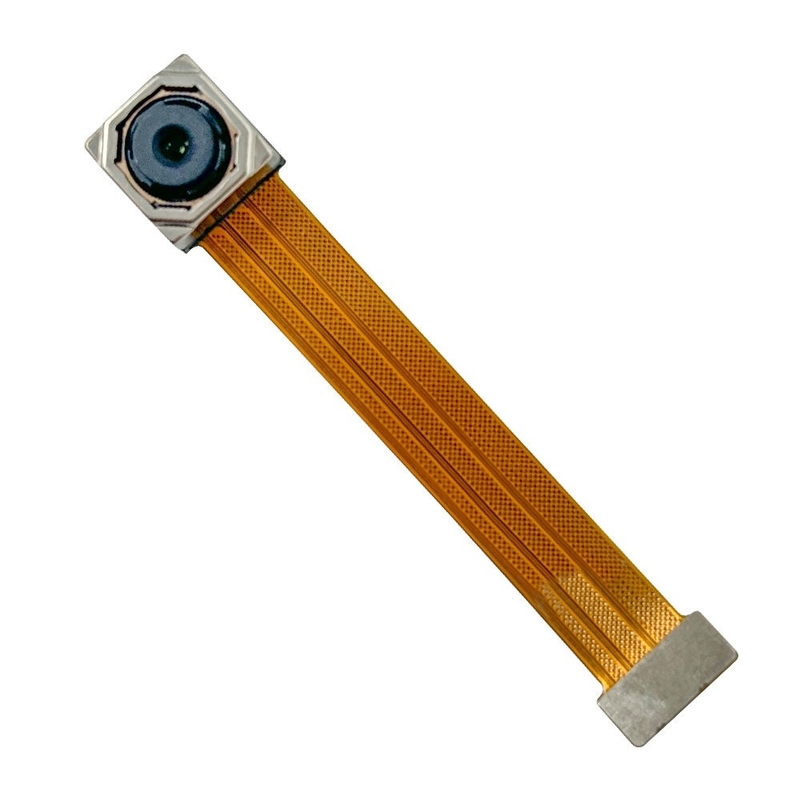

OV13855 4K 2K MIPI CIS-2 Camera Module:

TYS-13M55-V1 MIPI CSI-2 camera module adopting Omnivision 13MP OV13855 30fps high-performance image sensor features high resolution, autofocus, and other characteristics.With 13 million pixels and an effective pixel size of 4224 × 3136, it can capture high-definition images and videos, support 4K 2K high-definition resolution, and meet the high image quality requirements of scenes.

Using a 1/3.06-inch OV13855 PDAF 13MP CMOS sensor MIPI camera module pixel size is 1.12um*1.12um,frame rate is 30FPS, which can capture dynamic images smoothly.Supporting wide dynamic range and HDR function, it can clearly capture bright and dark details in environments with large changes in lighting. For example, in smart helmet applications, it can enable wearers to capture clear images even in strong light or alternating light and dark scenes.

Specification:

Technical & Mechanical:

• Power Supply:   Core: 1.14-1.26V

                         Analog: 2.7-3.0V

                               I/O: 1.7-1.9V



• Stable image: 0°C to +60°C
• Operating Temperature: -30°C to +85°C
• Module Size : 8.5mm*8.5mm*5mm
• Support 2*2 binning
• Built-in temperature sensor
• Programmable controls for frame rate,mirror and flip,cropping and windowing
• Support for PDAF

4K 2K 30fps MIPI camera module Application scenarios:

Factory price OV13855 13MP 30fps AF autofocus 4K 2K MIPI CSI-2 industrial intelligent helmets camera module to assist workers in remote assistance, on-site recording, etc; It can also be used for helmets for cycling, motorcycles, etc., to record the scenery and experiences during the cycling process, or for safety monitoring.

Support OEM ODM MIPI OV13855 13 million 4K high definition 30fps camera module for QR codes, Combined with PDAF phase focusing technology, it can quickly lock QR codes and transmit image data in real-time, meeting dynamic scanning needs (such as scanning codes while moving)

Customized 13MP OV13855 AF FF autofocus and fixed focus security and industrial equipment field MIPI camera module,PDAF is used to quickly lock moving targets (such as pedestrians and vehicles), while industrial detection equipment is used for high-precision object recognition and positioning.

OV13855 4K 2K 1080P MIPI camera module autofocus AF video doorbell scene ,the high resolution of 13 million pixels can clearly capture the facial features, clothing, and other details of visitors, allowing homeowners to accurately identify them even at long or close distances.

1/3.06" OV13855 CMOS PDAF sensor high resolution and high frame rate characteristics can provide clear real-time image data for small robots, helping them recognize the surrounding environment, obstacles, target objects, etc., facilitating robot path planning, object grasping and other operations, suitable for logistics robots, home service robots, etc.
