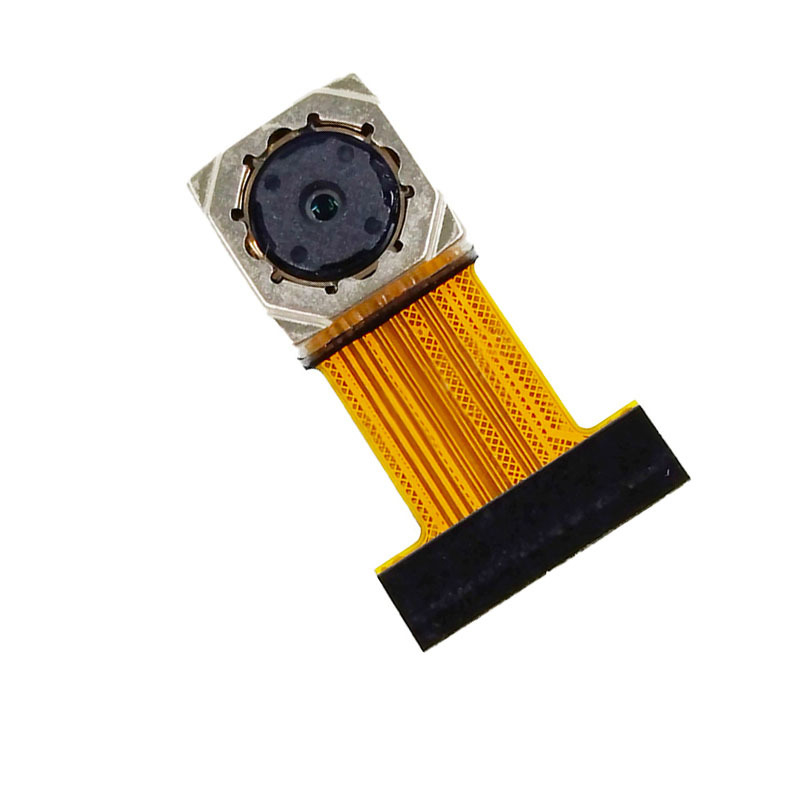

OV13850 MIPI CIS-2 Camera Module:

FY-13M-04-V1 MIPI camera module is based on the Omnivision OV13850 13MP 30fps CMOS image sensor, which has the characteristics of high resolution and low power consumption, and is widely used in fields such as security monitoring and industrial detection

High resolution: OV13850 MIPI FPC camera module with 13.2 million pixels resolution can reach 4224 × 3136 meet 4K 30fps providing clear and delicate images.

Pixel Size: MIPI camera module OV13850 1/3.06-inch 13MP with a pixel size of 1.12 um x 1.12 um with compact size, it is conducive to the miniaturization design of the camera module.

High speed and good image: Support customized 13million OV13850 4K 2K AF FF lens camera module with 4 lanes of MIPI interface, it can achieve high-speed image data transmission.Using OmniBSI+technology, it can reduce or eliminate fixed pattern noise, etc. It has a built-in temperature sensor and image quality control functions such as defect correction and automatic black level calibration.

Specification:

Technical & Mechanical:

• Power Supply:   Core: 1.14-1.26V

                         Analog: 2.6-3.0V

                               I/O: 1.7-3.0V



• Stable image: 0°C to +60°C
• Operating Temperature: -30°C to +85°C
• Module Size : 8.5mm*18mm*5.24mm
• Support 2*2 binning
• Built-in temperature sensor
• Programmable controls for frame rate,mirror and flip,cropping and windowing

OV13850 4K 2K MIPI CSI-2 camera module application scenarios:

OV13850 13MP 30fps AF 4K 2K MIPI CSI-2 security monitoring camera module,it can provide high-definition image capture to ensure clear monitoring images and clear recording of details in the monitoring scene.

Factory hot selling 13 million autofocus 30fps MIPI camera module for consumer electronics: commonly used in smartphones, tablets, etc., to provide users with excellent photo and video recording experiences.

Omnivision 1/3.06" OV13850 13MP AF low power MIPI camera module in the industrial field,it is used for product quality inspection.Through high-precision image capture, it can help detect product appearance defects and improve inspection accuracy.

OV13850 4K 2K AF no distortion camera module for medical industry,such as endoscopes and microscopes, providing high-quality imaging effects and assisting medical diagnosis.

Support customization 13MP OV13850 4224*3136 autofocus MIPI camera module can also be used for devices or scenes such as facial recognition, liveness detection, drones, robots, surveillance, high-speed scanners, etc.
