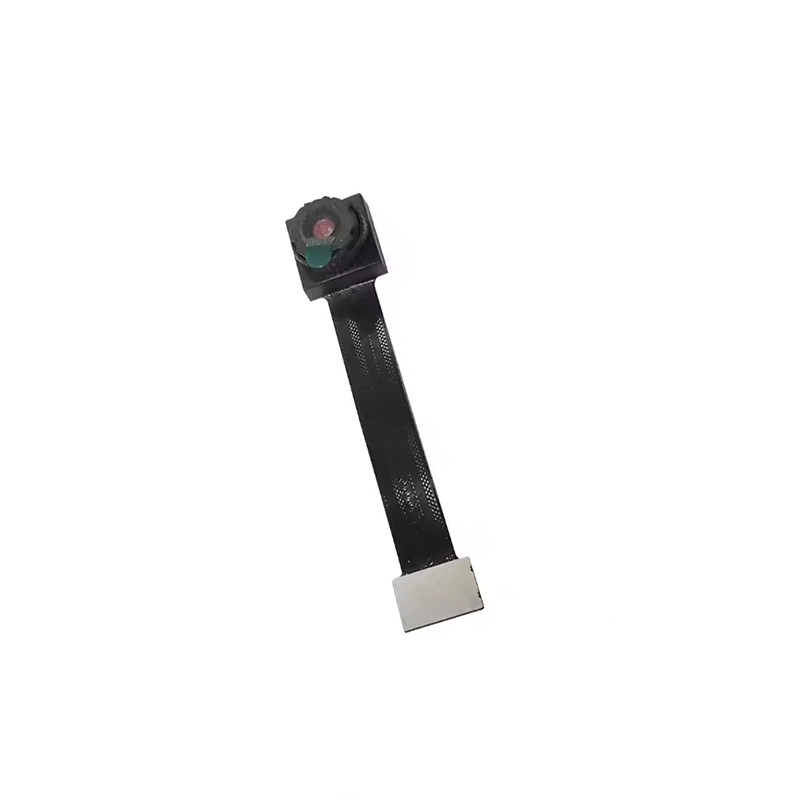

OV7251 Global Shutter MIPI Mono Camera Module:

Resolution: TYS-7251-V1 MIPI camera module supports VGA resolution 640 × 480 FF lens and can meet some application scenarios that do not require particularly high image resolution but have certain limitations on cost and volume, such as certain industrial detection, intelligent security monitoring, and other fields.

Sensor: MIPI CSI-2 camera module adpoting 0.3MP OV7251 Mono CMOS image sensor 1/7.5 inch global shutter.It can achieve fast image capture, effectively avoiding the blurring and distortion caused by capturing fast-moving objects, and is suitable for applications that require precise capture of moments, such as machine vision detection, high-speed moving object tracking, etc.

Frame rate: OV7251 black and white 0.3 million VGA high speed 100fps no distortion camera module with MIPI interface. It can be applied to situations that require real-time monitoring and analysis of rapidly changing scenes, such as rapid detection of automated production lines, robot vision navigation, etc.

Specification:

Technical & Mechanical:

• Power Supply: analog: 2.8V (nominal)

                              core: 1.5V (optional)

                                I/O: 1.8V (nominal)

•


  power requirements:Active: 117 mW @ 100fps, VGA output
                               Standby: 15 µA for AVDD, 40 µA for DOVDD
                               Without input clock, 700 µA for DOVDD with input clock
                    XSHUTDOWN: 5 µA for AVDD, 5 µA for DOVDD

• Stable image: 0°C to 50°C
• Operating Temperature: -20°C to 60°C
• Module Size : 10mm*10mm*2.85mm
• External exposure control and multi-sensor synchronization
• Horizontal/Vertical mirror

More details of VGA Mono OV7251 global shutter MIPI camera module:

OV7251 resolution 640*480 100fps MIPI UAV Drone camera module, When drones traverse complex environments such as forests and buildings, the global shutter can clearly capture the real-time position of obstacles.

1/7.5 inch 0.3MP VGA global shutter MIPI Mono camera moudle can be integrated into helmet cameras or smartwatches to capture high-speed footage in extreme sports such as skiing and racing, avoiding image ghosting.

For Industrial endoscope and pipeline inspection,we can use 0.3MP OV7251 no distortion 640*480 100fps camera module.Real time feedback of structural defects through high frame rate imaging in narrow spaces such as pipelines and engine interiors to assist maintenance decisions.

VGA MIPI OV7251 black and white global shutter high speed target tracking camera module can Quickly capture suspicious individuals at airports and stations, with a frame rate of 100fps to ensure clear imaging of running or moving targets
