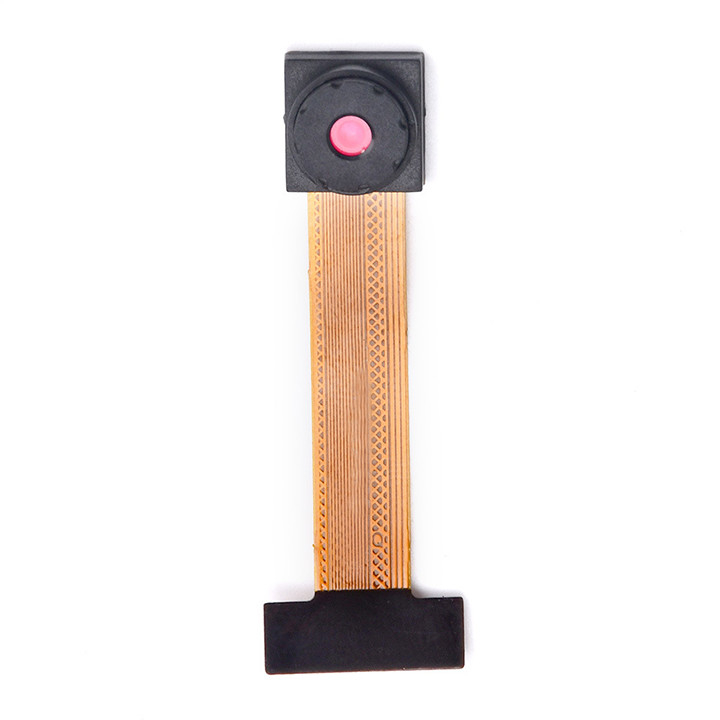

Factory Price SPI Camera Module With GC6133 ISP Cmos Sensor Fixed Focus 320*240 Resolution

GC6133 320*240 SPI Camera Module:

TYS-SPI6133-V1 SPI camera module 1/13 inch GC6133 80,000 mega with a small sensor size FF lens, it can achieve a miniaturized camera module design and support multiple output formats, including YUV/YCbCr 4:2:2, RGB565, and Raw Bayer formats, making it easy to interface and process data with different image processing systems or display devices.

Factory direct sales GC6133 0.8 million ISP 320*240 CMOS sensor with wide angle lens SPI camera module,It can be used for devices such as smart cameras and smart door locks. The GC6133 module can provide clear images to ensure the normal operation and safety of the equipment. For example, smart door locks can achieve remote visual door opening through this camera, and the situation outside the door can also be clearly seen at night.

Specification:

Technical & Mechanical:

• Power Supply: AVDD: 2.7 ~ 3.0V (Type 2.8V)
• Stable image: 0°C to 60°C
• Operating Temperature: -20°C to 70°C
• Module Size : 6mm*30mm*3.3mm
• Windowing support
• Horizontal/Vertical mirror

More details of GC6133 SPI camera module:

Pixel and Resolution: 1/13 inch GC6133 SPI camera module 320*240 FF no distortion belonging to lower resolution sensors, it is suitable for some application scenarios that do not require high image resolution but are sensitive to cost and power consumption.

Output format: 80,000 mega pixel YUV GC6133 30fps FPC camera module with SPI interface supports multiple output formats, including YUV/YCbCr 4:2:2, RGB565, and Raw Bayer format, making it easy to interface and process data with different image processing systems or display devices.

Image processing function: SPI camera module with GC6133 0.8MP ISP CMOS sensor , which can provide very smooth Automatic Exposure (AE) and accurate Automatic White Balance (AWB) control, automatically optimizing image quality under different lighting conditions, reducing manual intervention and post-processing workload. In addition, it also supports windowing, horizontal/vertical mirroring, and other functions to meet the image cropping and transformation needs in different application scenarios.

ADC resolution: GC6133 Fixed Focus 320*240 30fps wide angle lens with SPI interface,11 bit ADC that can perform high-precision digital conversion on analog signals, helping to improve image details and dynamic range.

Low power design: Customized 320*240 GC6133 ISP sensor Home Monitoring SPI camera module,The power supply voltage AVDD is 2.7V-3.0V, with a typical value of 2.8V. The operating voltage is relatively low, which meets the requirements of low-power design.
