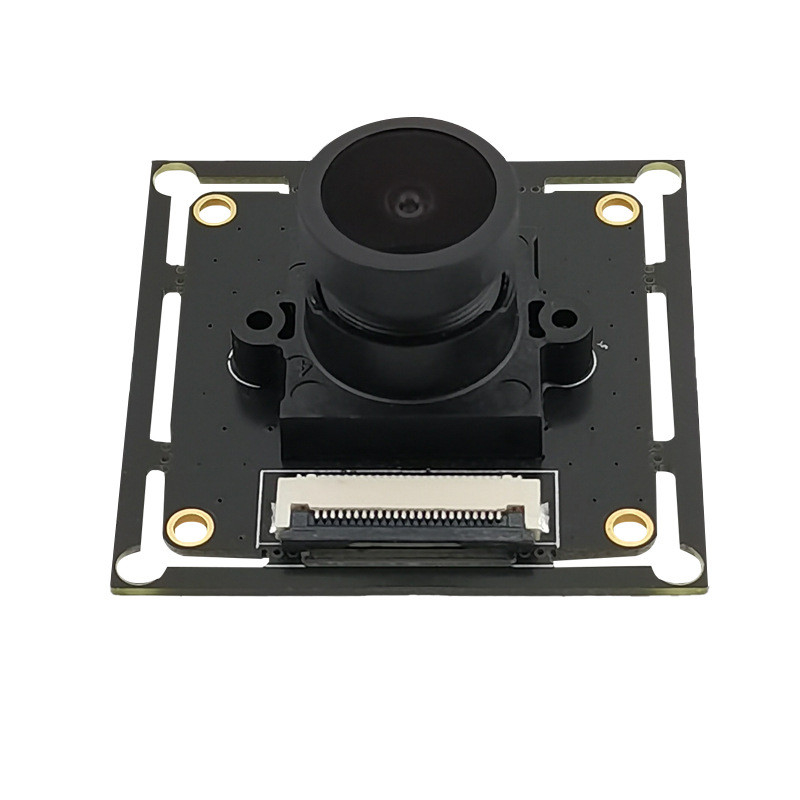

MIPI Camera Module SC233HGS Full HD 1080P 120fps Built in ISP Global Shutter

SC233HGS global shutter 1080P MIPI Camera Module:

TYS-SC233-V1 MIPI camera module use SmartSens Technology 2MP Global shutter SC233HGS CMOS image sensor with 1/2.3 inch 1928V*1208H resolution @120fps high sensitivity and provide 12/10/8-bit 1/2/4 Lane MIPI or 10 bit DVP or 1210/8-bit 1/2/4 Lane LVDS output interfaces.

1/2.6 inch SC233HGS global shutter with frame rate of 120fps FF no distortion MIPI FPC camera module. This high-speed shooting ability is beneficial for applications that require real-time monitoring of fast-moving scenes,such as in automotive electronics for monitoring the surrounding environment drring high-speed driving.

Specification:

Technical & Mechanical:

• Power Supply:  AVDD=2.8V±0.1

                          DVDD=1.2V±0.06

                        DOVDD=1.8V±0.1



• Stable image: -20°C to +60°C
• Operating Temperature: -30°C to +85°C
• Module Size : 38mm*38mm*13.7mm
• Horizontal and vertical window adjustment
• Built in temperature sensor
• 2*2 binning mode
• Noise reduction

More details of 1080P global shutter MIPI camera module:

High speed 120fps global shutter 1080P SC233HGS ISP FF no distortion MIPI CSI-2 camera module for robot vision.It can effectively suppress the motion deformation and trailing blur of imaging, capture moving objects in high definition and invisibly, help robots accurately recognize the surrounding environment, achieve efficient obstacle avoidance and precise positioning, and is suitable for various types of robots such as service robots and industrial robots.

1/2.6 inch 2 million 1920*1080 3D scanner Full HD global shutter FF night vision MIPI camera module. It can quickly capture object image information. High resolution and high dynamic range help to obtain detailed shape data of objects, providing high-quality image foundation for 3D modeling and improving the accuracy and efficiency of 3D scanning.

For license plate recognition system 2MP SC233HGS global shutter 1080P high speed 180fps camera module with MIPI interface. It can be used in intelligent transportation, with high resolution and high dynamic range to ensure clear capture of license plate details and accurate recognition of license plate numbers under different lighting conditions. It can also be applied to driving recorders, which can clearly record the images during the driving process. In nighttime or environments with frequent changes in lighting, it can ensure the clarity and integrity of video images.

Factory direct sales 2-megapixel SC233HGS HDR 1080P 180fps global shutter high sensitivity MIPI CSI-2 camera module.Can be installed on industrial assembly lines to scan barcodes on product packaging, quickly and accurately identify product information, and achieve automated production and quality traceability. Even if the product quickly passes through the scanning area, it can still capture barcodes clearly with high frame rate and shutter efficiency, ensuring production efficiency and accuracy.
