Fixed Focus Phone Camera Module 2MP Raspberry Pi Camera Module PS5268

Name: Fixed Focus Phone Camera Module 2MP Raspberry Pi Camera Module PS5268
Brand: Tuyuan Shun Intelligence (shenzhen) Co., Ltd.
SKU: T-H2M-V02
Price: 19.99 USD
Availability: InStock

Brand Name:	TOLUCKY
Model Number:	T-H2M-V02
MOQ:	1
Price:	$10.99-$29.99
Delivery Time:	5-15 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Features:

Plug And Play

Description:

1080P WDR USB2.0 Camera Module

Sensor Type:

1/2.7" PS5268 CMOS

Frame Rate:

1920*1080 30fps

Focusing Type:

Output Format:

MJPG/YUY2

Interface:

USB

Package:

CSP

Packaging Details:

1cm*6*cm*1.075cm

Supply Ability:

800K PCS/Month

Highlight:

phone camera module 2mp

2mp raspberry pi camera module

raspberry pi camera module ps5268

Product Description

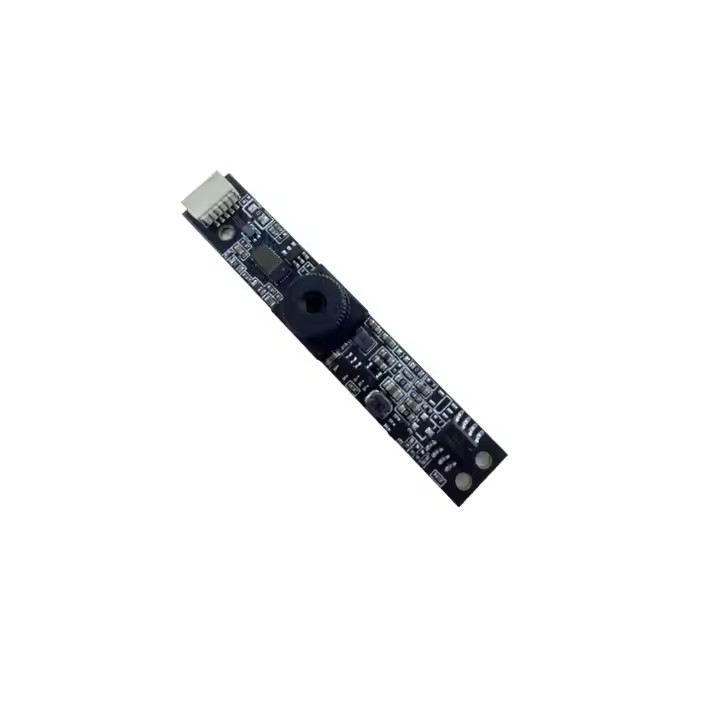

USB Camera Module With 2MP Fixed Focus PS5268 1080P 30fps CMOS Sensor

PS5268 1080P USB2.0 Drive Free Camera Module:

T-H2M-V02 USB camera module used low power high quality 1080P 30fps PS5268 CMOS image sensor from PrimeSensor.Output of 1920x1080 pixels with rolling shutter readout. It embedded the new FinePixel^TMand HDR sensor technology to perform the excellent image quality and single-shot high dynamic range synthesized image output.

USB2.0 camera module with 2million PS5268 1920*1080 WDR fixed focus wide angle lens has a wide dynamic range, achieved through the implementation of high sensitivity and low noise.Small and medium-sized devices with requirements for integration convenience and image quality stability, catering to both consumer and light industrial applications.

Specification:

Sensor	1/2.7" PS5268 CMOS	Resolution	2MP 1920*1080
Pixel Size	3.0um*3.0um	Output Format	MJPEG/YUY2
Shutter Type	Rolling Shutter	Interface	USB2.0
Power Supply Voltage	DC5V	Microphone	Support
Auto Exposure Control (AEC)	Auto Exposure	Auto White Balance (AEB)	Auto
Max Frame Rate	1920*1080 30fps	Operating System Request	Windows XP, Windows Vista, Windows 7,android,Linux
Angle of view	150°	F.No	2.4
Distortion	＜-17%	IR Filter	650nm
Max Dynamic Range	85dB	SNR_Max	41dB
Application	Vending machine/smart doorbell/smart refrigerator/driving recorder/integrated advertising machine/access control system/ATM/All-in-one Machine

Technical & Mechanical:

Power Supply Voltage: USB_5V±5%
Operating Temperature: -20°C to +65°C
Stable Temperature:-10°C to +55°C
Storage Temperature: -30°C to +70°C
Module Size : 1.0x6.0x1.075cm
Customization is fully supported

Key application description of 1080P USB WDR camera module:

Factory customized USB 2.0 smart home monitoring camera module, equipped with a 2-megapixel 1920 * 1080 night vision PS5268 CMOS sensor. As the core module of home cameras, it can be used to monitor the activities of the elderly/children. It maintains a wide dynamic range to maintain image balance in scenes such as turning on lights at night and strong light outside the window, with a frame rate of 30fps to avoid dynamic ghosting.

Self service terminal devices, PS5268 2MP 1080P 30fps WDR fixed focus low power USB camera module.such as self-service machines in government halls and ATM machines in banks, are used for user facial recognition and identity verification. The driver free design reduces the difficulty of device integration and adapts to the changing lighting conditions in public environments.

Professional manufacturer 2 million pixel wide angle drive free USB camera module for face recognition payment device integrated into ATM machine and self checkout terminals, with 1080P image quality and wide dynamic range, it can quickly recognize users' faces in a mixed environment of supermarket lighting and shopping mall natural light, improving payment efficiency.

With Online Education and Live Classroom.2MP Fixed Focus PS5268 1080P 30fps CMOS Sensor USB Driver free camera module design compatible with Windows, Linux, Android and other systems, can be quickly integrated into computers, tablets or live streaming devices, clearly capturing teacher's blackboard writing, experimental operations and other details. The WDR function ensures that the courseware projection and teacher's screen are clear at the same time.
