2K 4k Camera Sensor Module Sony IMX458 Night Vision Camera Module

Name: 2K 4k Camera Sensor Module Sony IMX458 Night Vision Camera Module
Brand: Tuyuan Shun Intelligence (shenzhen) Co., Ltd.
SKU: TYS-USB13M-V01
Price: 32.90 USD
Availability: InStock

Brand Name:	TOLUCKY
Model Number:	TYS-USB13M-V01
MOQ:	1
Price:	$26.9-$39.9
Delivery Time:	5-15 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Features:

Plug And Play

Description:

13MP 4K 30fps USB Camera Module

Sensor Type:

1/3.06" IMX458 CMOS

Frame Rate:

15fps/4K 15fps/1080P 15fps/720P

Lens:

Optional

Focusing Type:

Output Format:

MJPG/YUY2

Interface:

USB

Packaging Details:

3.8cm*3.8cm*2.14cm

Supply Ability:

800K PCS/Month

Highlight:

2k 4k camera sensor module

4k camera sensor module sony

imx458 night vision camera module

Product Description

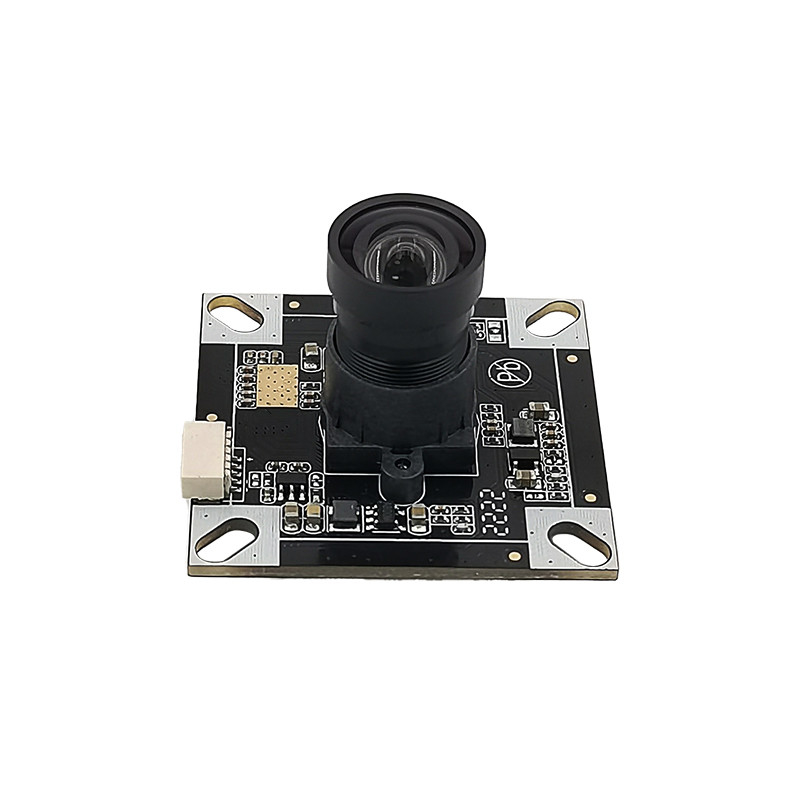

USB Camera Module with Sony IMX458 13MP 4K 2K 30fps HDR night vision

IMX458 4K 2K USB Camera Module:

TYS-USB13M-V01 USB camera module is used 1/3.06 inch 13MP IMX458 active pixel Rolling Shutter CMOS image sensor from Sony.which can capture high - definition images with a resolution of 4K (3840x2160) at 30 frames per second. This enables the camera module to capture extremely clear details, colors, and textures, whether it is used for video conferencing, security monitoring, or industrial inspection.

The IMX458 13MP camera module 4K 2K 30fps FF wide angle high - quality images with USB interface, which has good compatibility and can be easily connected to computers, laptops, tablets, and other devices. It is plug - and - play, and some modules support the UVC protocol, which means they can work with common operating systems such as Windows, Linux, and Android without installing additional drivers.

Specification:

Sensor	1/3.06" IMX458 CMOS	Resolution	13MP 4208*3120
Pixel Size	1.12um*1.12um	Output Format	MJPEG/YUY2
Shutter Type	Rolling Shutter	Interface	USB2.0
Power Supply Voltage	DC5V	Mic	No
Lens Type	1/2.8"	Lens Construction	4G2P+IR650
Field of View	D=81°	F/NO	F4.2
Resolution & Max Frame Rate	MJPG: 15fps/4K 15fps/1080P 15fps/720P	Operating System Request	WindowsXP/7/8/10/vista/Server/Linux(include UVC)/Android
Application	Video conferencing/ high-speed cameras/robots/Cellular Phone and tablet PC/Security Monitoring/Medical Imaging/ID card recognition

Technical & Mechanical:

Power Supply Voltage: USB_5V±5%
Operating Temperature: -20°C to +65°C
Stable Temperature:-10°C to +55°C
Storage Temperature: -30°C to +75°C
Module Size : 3.8X3.8X2.14cm
Max Working Current: 250-260mA

More details of IMX458 4K USB camera module:

1/3.06 inch 13 million IMX458 high resolution 4K 30fps USB drive free camera module. It can be used for self-service terminal devices such as vending machines, ATM machines, etc., to achieve functions such as facial recognition and barcode scanning, improving user experience and the intelligence level of the device.

Wholesales factory price IMX458 13-megapixel 4208*3120 4K resolution FF wide angle UAV drones camera module with USB interface.with its high frame rate and high-resolution characteristics, it can capture clear and stable aerial images, meet users' aerial photography needs, and record exciting moments.

Customization Sony IMX458 13MP 4K 2K 30fps USB drive free camera module was initially designed primarily for color cameras, especially for smartphones and tablets, providing clear camera and video functions to meet users' daily shooting needs.

IMX458 high resolution 13MP 4K 2K USB camera module for ID card recognition. High pixels can make the captured ID card image clear, and the details such as text and photos can be presented completely, which is convenient for accurate identification of information on the ID card, such as the name, ID card number, photos, etc., and reduces identification errors.

Factory price IMX458 high resolution 13 milllion FF wide angle lens USB camera module. With high sensitivity, low noise and other characteristics, it is widely used in the field of security monitoring and can be used in urban traffic monitoring, park security and other scenarios.
