12MP PDAF 4K Camera Module IMX362 Low Light 1.25mm CMOS Camera Module

Name: 12MP PDAF 4K Camera Module IMX362 Low Light 1.25mm CMOS Camera Module
Brand: Tuyuan Shun Intelligence (shenzhen) Co., Ltd.
SKU: TYS-USB78-V01
Availability: InStock

Brand Name:	TOLUCKY
Model Number:	TYS-USB78-V01
MOQ:	1
Price:	Negotiable
Delivery Time:	5-15 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Features:

Plug And Play

Description:

IMX362 12MP PDAF USB Camera Module

Sensor Type:

1/2.55" CMOS

Frame Rate:

4K 2K 30fps 1080P 60fps

Lens:

Optional

Focusing Type:

Output Format:

MJPG/YUY2

Interface:

USB

Packaging Details:

3.8X3.8X1.07 cm

Supply Ability:

800K PCS/Month

Highlight:

pdaf 4k camera module

4k camera module imx362

pdaf camera module 12mp

Product Description

USB Camera Module With 12MP 4K PDAF High Resolution IMX362 CMOS Sensor

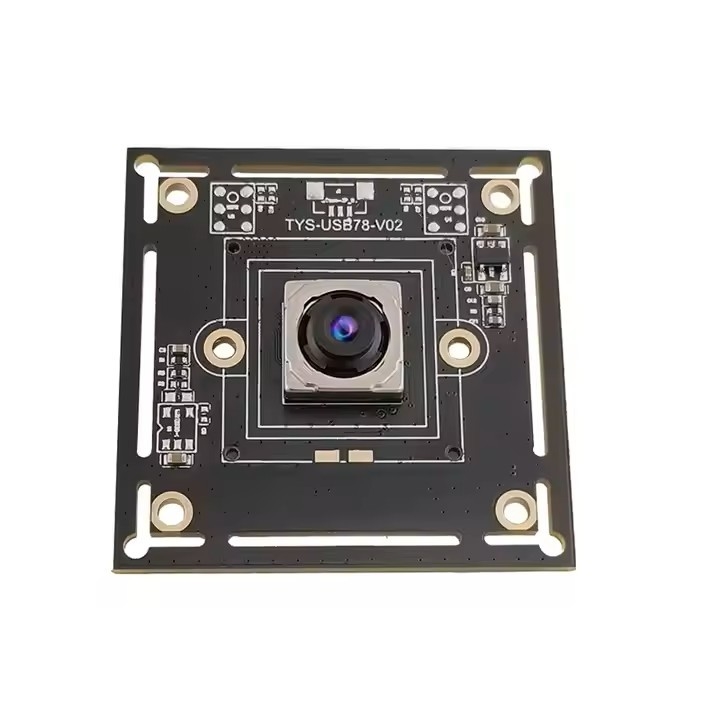

IMX362 4K USB Camera Module:

TYS-USB78-V01 USB camera module is used Sony IMX362 1/2.55 inch 12 megapixel CMOS image sensor total pixel count of approximately 4048 (H) × 3168 (V), capable of capturing 4K - resolution images at 3840×2160.With advantages such as high resolution and PDAF function, and excellent low light performance, it can be applied to multiple scenarios such as video conferencing, security monitoring, and industrial inspection.

Sony IMX362 12MP high resolution 4K 30fps PDAF no distortion camera module with USB interface. Which can provide high - speed data transmission to ensure the smooth output of 4K - resolution images and high - frame - rate video. The USB interface also has good compatibility and can be easily connected to various devices such as computers, laptops, tablets, and industrial control systems.

Specification:

Sensor	1/2.55" IMX362 CMOS	Resolution	12MP 4048H*3168V
Pixel Size	1.4um*1.4um	Output Format	MJPG/YUY2
Max working Current	220-250mA	Focusing Type	AF 10cm-∞
Shutter Type	Rolling Shutter	Interface	USB2.0 1.25mm-5P
Power Supply Voltage	USB 5V±5%	Microphone	Support Digital Mic
Lens Type	1/2.5"	Lens Construction	5P
Field of View	D=79.9° H=67.9° V=53.5°	F/NO	1.8
Max Frame Rate	MJPG: 40003000 15fps 38402160 30fps 1920*1080 60 fps	Operating System Request	WindowsXP/Linux/Android
Application	Cellular phone and Tablet PC/High-speed cameras/ passport recognition products/AI Machine Vision/document scanning and high-speed scanner

Technical & Mechanical:

Power Supply Voltage: USB_5V±5%
Operating Temperature: -20°C to +65°C
Stable Temperature: -10°C to +55°C
Storage Temperature: -30°C to +75°C
Module Size : 38mm*38mm*10.7mm
Customization is fully supported

More details of 12MP 4K USB camera module:

IMX362 USB drive free camera module 4K 2K 30fps PDAF for document scanning and high-speed scanner. With its high pixel and autofocus capabilities, it can quickly capture clear images of paper documents, books, and other content, convert them into electronic documents, and is suitable for high-speed scanner devices, facilitating digital storage and transmission of documents and improving office efficiency.

Factory hot selling USB video conferencing and live streaming camera module 4048*3168 high resolution 4K 2K PDAF with 12 million pixels. it can provide clear images, and the autofocus function ensures that the image is always clear, even if the person is moving, it can quickly keep up with the focus. It is suitable for video conferences, live streaming, online courses and other scenarios, allowing users to have a better visual experience.

1/2.55 inch IMX362 4K 2K 30fps CMOS color image sensor USB camera module for facial recognition payment, passenger flow statistics, product display analysis, etc. The autofocus function can quickly recognize the facial features of different customers or the products on the shelves.

High quality 12 million IMX362 4K 30fps PDAF camera module with USB interface. The high resolution and autofocus features enable it to capture details in the monitoring scene clearly, accurately focusing and imaging both distant objects and close range facial features.
